SUL-DLN0203/Baffle

 SUL-DLN0203-Baffle

 SUL-DLN0203/Baffle

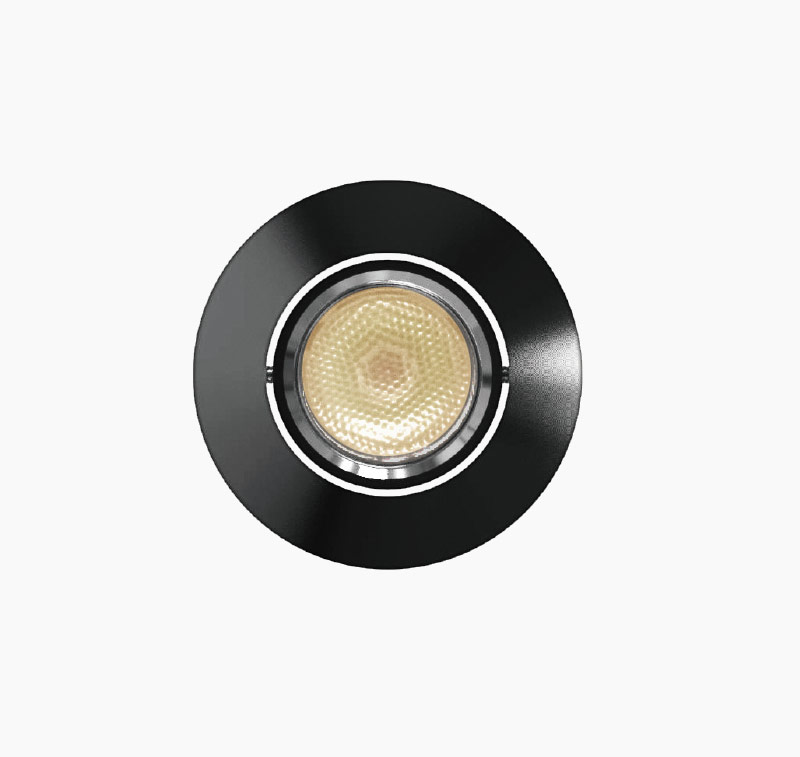

2 1/2" Baffle LED Downlight
Description Dimension
APPLICATION:
 SUL-DLN0203-Baffle-line
Showcase,kitchen cabinet,restaurant millwork.
CONSTRUCTION:
Solid anodized aluminum,RoHS compliant.
MOUNTING:
Recessed mount to cabinet millwork with friction fit spring clips.Comes with 6'(1820mm) wire lead.
Performance Summary Application
Luminous flux @2700K: 150lm

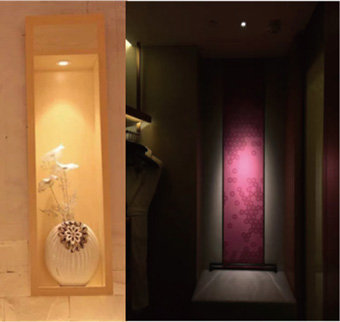

 SUL-DLN0203-Baffle-application

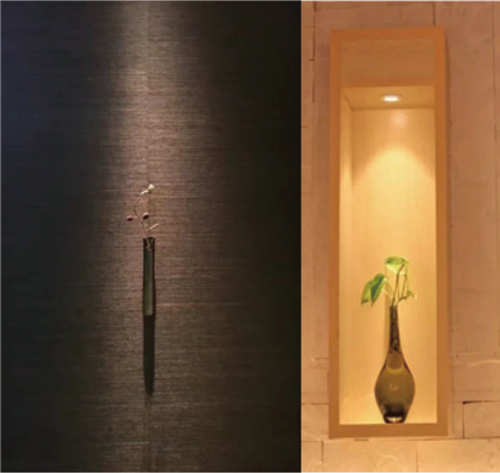

 SUL-DLN0203-Baffle-application2
Luminous flux efficacy: 60lm/W @2700K
CCT: 2700K/3000K/4000K/5000K
Colour rendering index: 90
Lumen maintenance: >70% of initial lumens @50,000 hrs
System wattage: 2.5Watt @700mA
Input voltage: DC700mA 3V
Power factor: 1.0
Dimming range: dimmable Installation
Electrical safety: class III

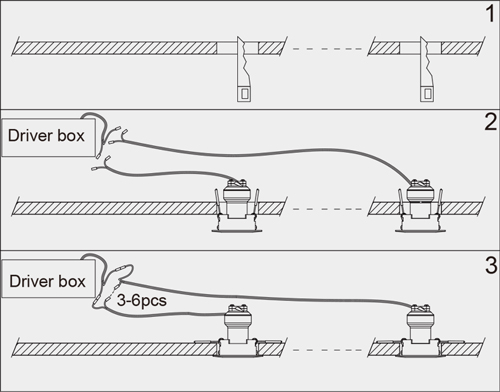

 SUL-DLN0203-Baffle-install
IP rating: IP40

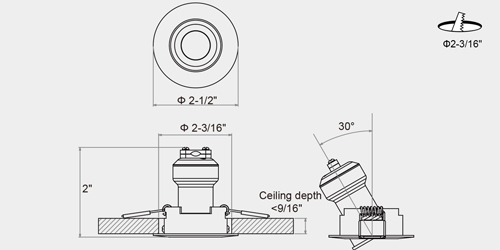

Dimensions: Φ2-1/2" x 2"
Cutout: Φ2-3/16"
Adjustable: +30 ~ -30° tilt
Luminaire material: solid anodized aluminum
Finish: white/black
Packing size: 460mm x 385mm x 180mm
Net weight: 0.1Kg
Gross weight: 11Kg
Pieces/carton: 90pcs
